camper - flat road

FLAT ROAD is a robust, fully welded aluminum camper cabin specifically designed for pickup trucks. Each cabin is custom-built to the dimensions of the truck bed – ideal for camping, long journeys, or any outdoor adventure.

Our cabins are already successfully exported to Australia, Southeast Asia, and North and South America, and are known for their superior craftsmanship, light weight, and exceptional durability.

Each cabin is fully insulated, precision-welded, and constructed from high-quality materials.
With its all-aluminum structure, insulated door, option for a diesel heater or portable air conditioner, and a spacious double bed, FLAT ROAD is the reliable companion for off-road travel and comfortable camping.

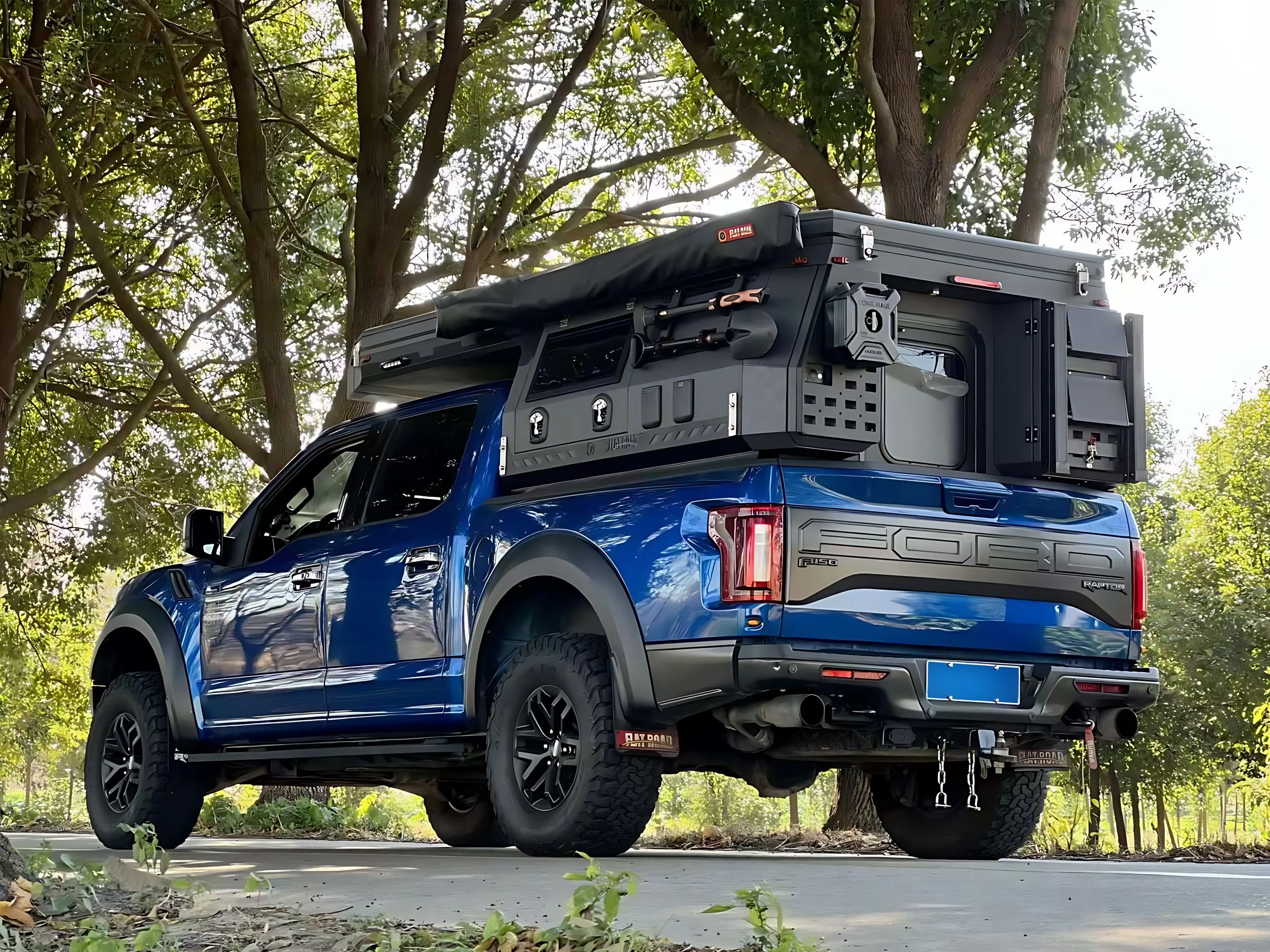

A blue Ford F-150 pickup truck with a large, black roof-mounted camper and outdoor camping gear in a wooded area.

Basic €17,900

Designed for practical and lightweight travel:
- Total weight approx. 350 kg
- Welded aluminum monocoque body with full insulation
- Pop-up roof with 4-layer thermal window system
- Aluminum side windows and insulated rear door
- U-shaped sofa with 50D high-density foam cushions and waterproof covers, plus double bed (2100×1450 mm)
- Environmentally friendly PVC floor and E0 plywood panels.

Blue pickup truck with a rooftop camper tent and awning, outdoor table with chairs, and a scenic mountain background

Standard €21,900

Includes all the features of the Basic Version plus an enhanced
- Total weight approx. 450 kg
- Complete RV electrical system (control panel, sockets, USB)
- DC-DC charging system (30A) and 220V/12V converter
- LED lighting system, third brake light and interior lighting
- 70L stainless steel water tank (SUS304) with integrated pump and external shower
- Compact kitchen with sink and cooking area

Configuration list

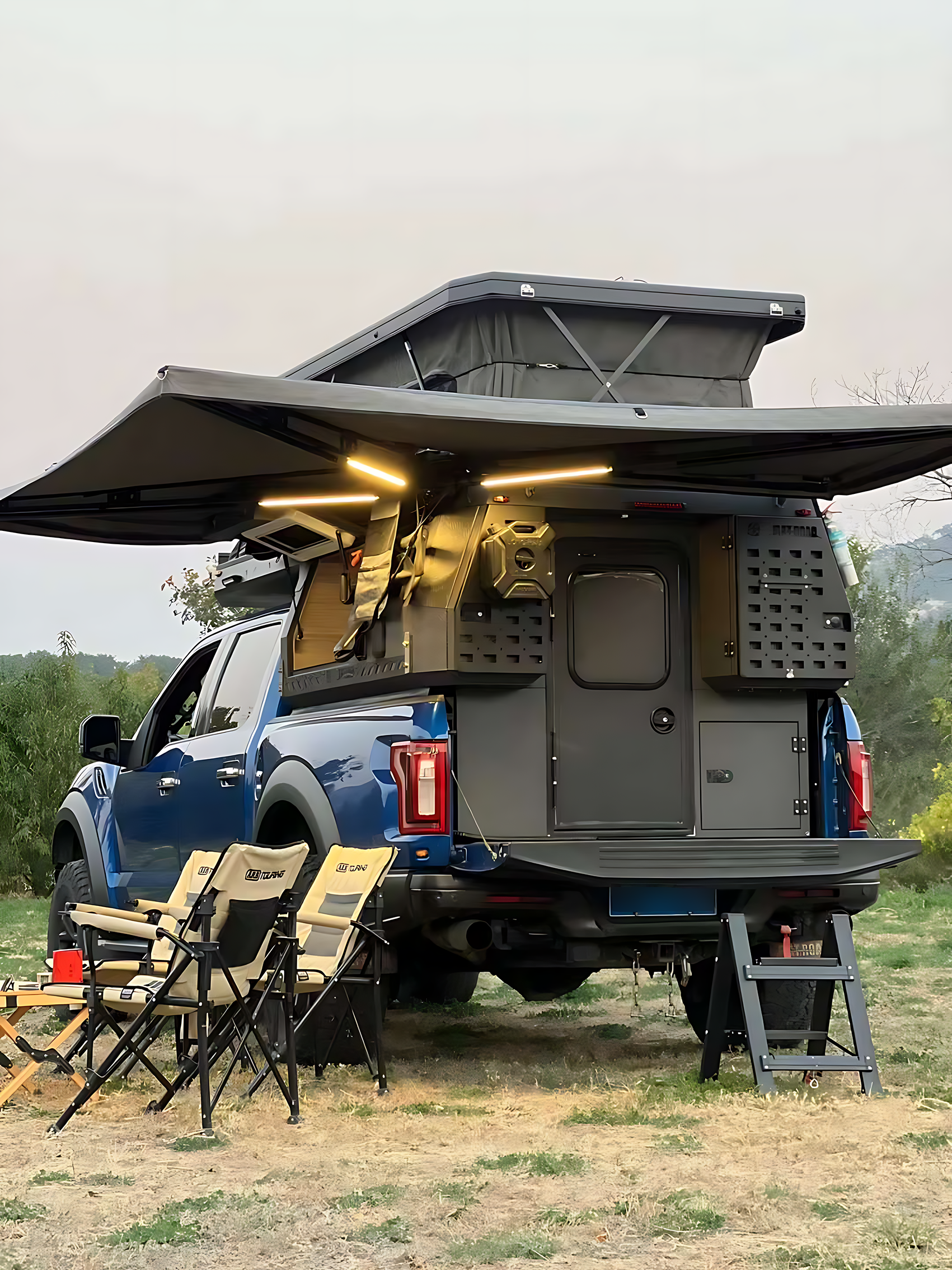

Blue truck with a camper setup, open side awning, outdoor chairs, and stairs leading to the camper door in a grassy outdoor setting.

  • Lifting System - Manual lift with 4×304 stainless steel hydraulic struts + 4×304 stainless steel scissor braces

    Body Structure
    ① Monocoque welded structure: 5-series （5025）aviation Aluminum exterior + internal Aluminum square tubes
    ② 2× rear Aluminum toolboxes
    ③ Pre-installed multi-function mounting interfaces

    Cabin Insulation - Middle-layer high-density, flame-retardant and eco-friendly insulation board

    Pop-up Roof
    ① 4-layer window: Thermal curtain + waterproof tent fabric + PVC rainfly + mesh mosquito net
    ② Lift height: 900mm/35.4"
    ③ Colour: Matte Charcoal / Yellow

    Surface Coating - Eco-Friendly PVC Floor

    Windows - Aluminum Alloy Out-Swing Side Window (with Privacy Curtain & Mosquito Screen)

    Door - American-style RV Rear Door (with Privacy Curtain & Mosquito Screen)

    Interior - E0 Grade Lightweight Eco-friendly Plywood

    Overhead Bed - Telescoping bed: 2100×1450mm (6.88Ft×4.75Ft)

    Seating - Convertible U-shaped sofa + folding table

    Cushions - Padding; 50D high-density foam mattress + waterproof covers

    Charger - Mains Power Charging Kit (with Waterproof Power Plug)

    Lighting - LED Interior Lighting; Exterior Lights ×3;  Light Switch

    Jacks - Quick-Release Camper Support Legs Kit

    Tools - Tool Kit; Emergency toolset

    Securing - Tie-downs; 4× Heavy-duty ratchet straps

    Exterior - Aviation-grade Aluminum Alloy quick-release rails

    Accessories - Hardware, Sealing & Decorative Components

  • All the features from Basic Version

    Control System and Wiring - RV Control Panel, Switches; Power Outlet; USB Ports; 12V DC Power Port; Wiring Harness; Fuses

    Vehicle Charging
    ①30A DC-DC Charging System with Current Limiting Module
    ② Circuit Breaker & Short-Circuit Protection Device
    ③ Chassis-to-Cabin Power Cabling

    Electrical Accessories - Multi-function Electrical Box, Water Fill Inlet, Charging Socket, Fishtail Lock

    Lighting - High-Mount Stop Lamp (HMSL)*1, Position Lamps*8

    Water Tank - Water System Components
    ①70L RV Water Tank (SUS304 Stainless Steel)
    ②Silent Diaphragm Water Pump
    ③Water Level Indicator
    ④Food-Grade Plumbing System

    Bathroom & Kitchen - Stainless Steel Sink, Foldable Faucet + Induction Cooktop

    Outdoor Shower - Dual-Valve Mixing System

    Colour - Matte Black / Matte Dark Gray / Matte Light Gray

  • Electric Pop-top Roof - Aluminum Alloy Electric Pop-top Roof System

    Slide-Out Mechanism - Straight-Push Side Expansion System

    Roof System - Roof Hatch, Roof Vent, Low-Profile Roof Hatch (5cm Height Reduction), 180° Panoramic Front Skylight

    Observation Window - Fixed Front Observation Window, Sliding Front Observation Window, Gull-Wing Window

    Power setup - Integrated Power System

    Solar power options - 400W ultra-thin flexible panels; 200W lightweight panels for curved roof mounting

    Air Conditioner EcoFlow Space S1 Pro Portable Cooling Unit; EcoFlow Space S2 Pro Portable Heat/Cool Unit; Yilford Rear-Mounted RV Air Conditioner

    New Energy Charging Port - 5KW New Energy Charging Port

    Diesel Heater - 5KW Horizontal Diesel Heater with High-Altitude Kit

    Monitor - 360° HD 5-Channel Panoramic Monitoring System

    Fridge - 30L Portable Refrigerator (Side Expansion Required)

    Water Heater - Flat Road Camping Gas Instant Water Heater (6L/min Flow Rate)

    Out Side Cooktop - Flat Road Rear Pull-Out Stainless Steel Outdoor Cooktop (Diesel Version)

    Shower - Indoor Shower Kit

    Flat Road 270° Side Awning (Left-Side Installation, Custom 2.6m with LED Light Bar)

    Flat Road 270° Side Awning with Enclosure Tent

    Flat Road Pop-up Shower Tent

    Full Aluminum Furniture Set

    Aluminum Aircraft Quick-Release Rails ×2

    High-Strength Aluminum Recovery Boards ×2

    Fire Extinguishers ×2 with Quick-Release Brackets ×2

    Outdoor Tool Kit - Camping Shovel, Axe, Rhino Locking Pins ×4,  Rhino Locking Pins ×4

    10L Jerry Can (Fuel/Water)

join our community

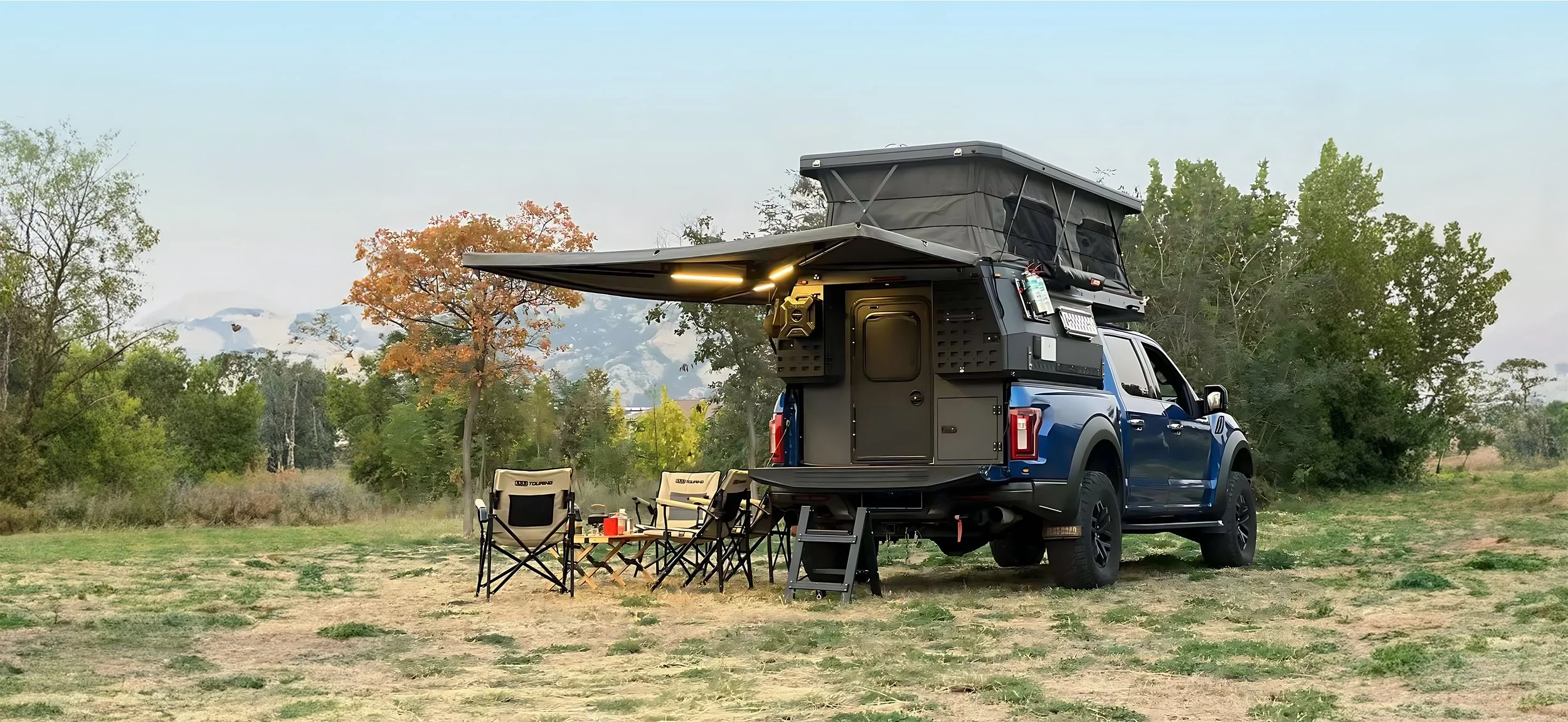

Blue pickup truck with a rooftop tent set up in a grassy outdoor area, surrounded by trees and mountains in the background, with camping chairs and a small table nearby.
A blue Ford pickup truck equipped for outdoor camping is parked among trees on a dirt area with fallen leaves, with a bright sky in the background.

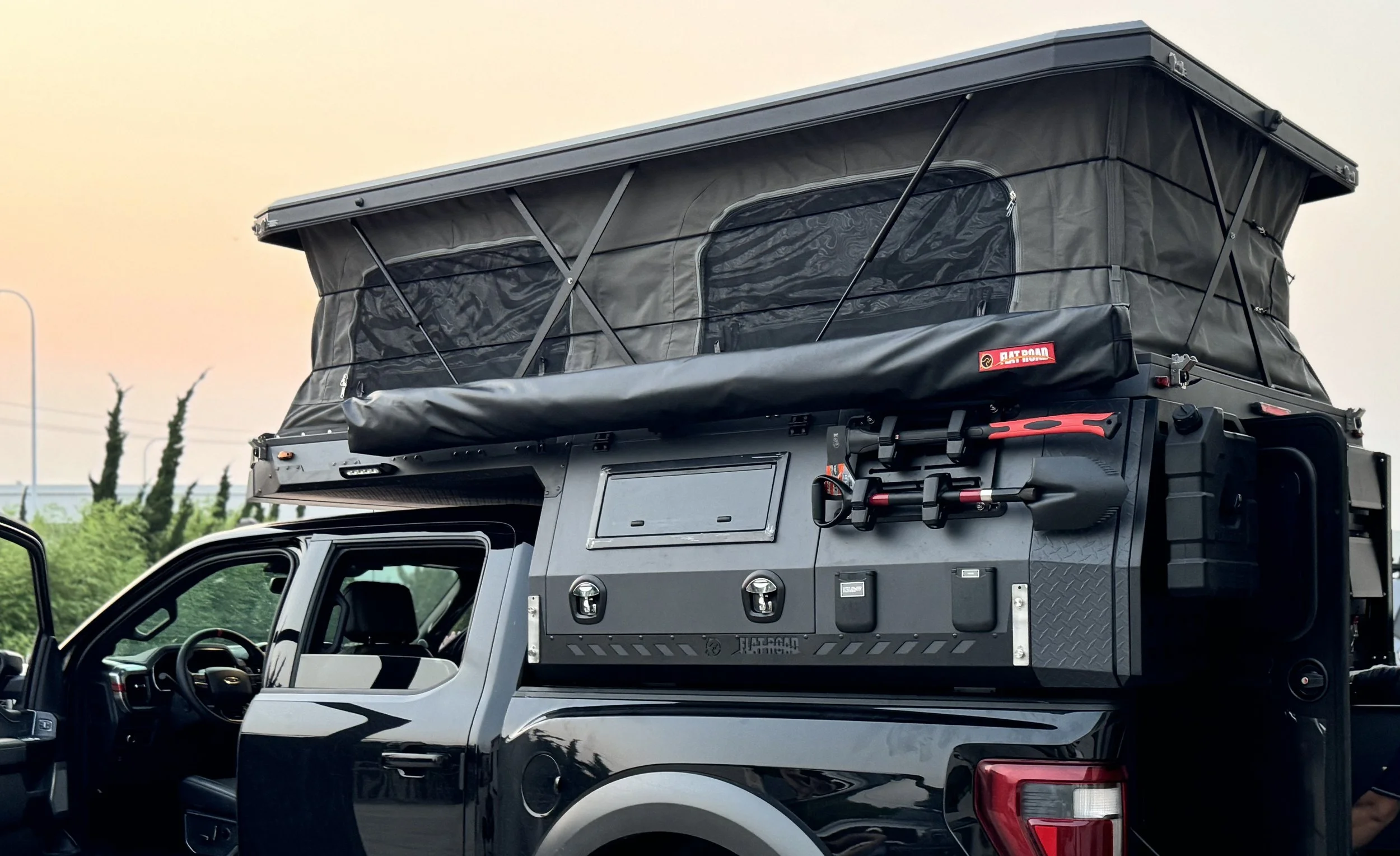

A black pickup truck equipped with a rooftop tent, tools, and storage compartments for outdoor camping.

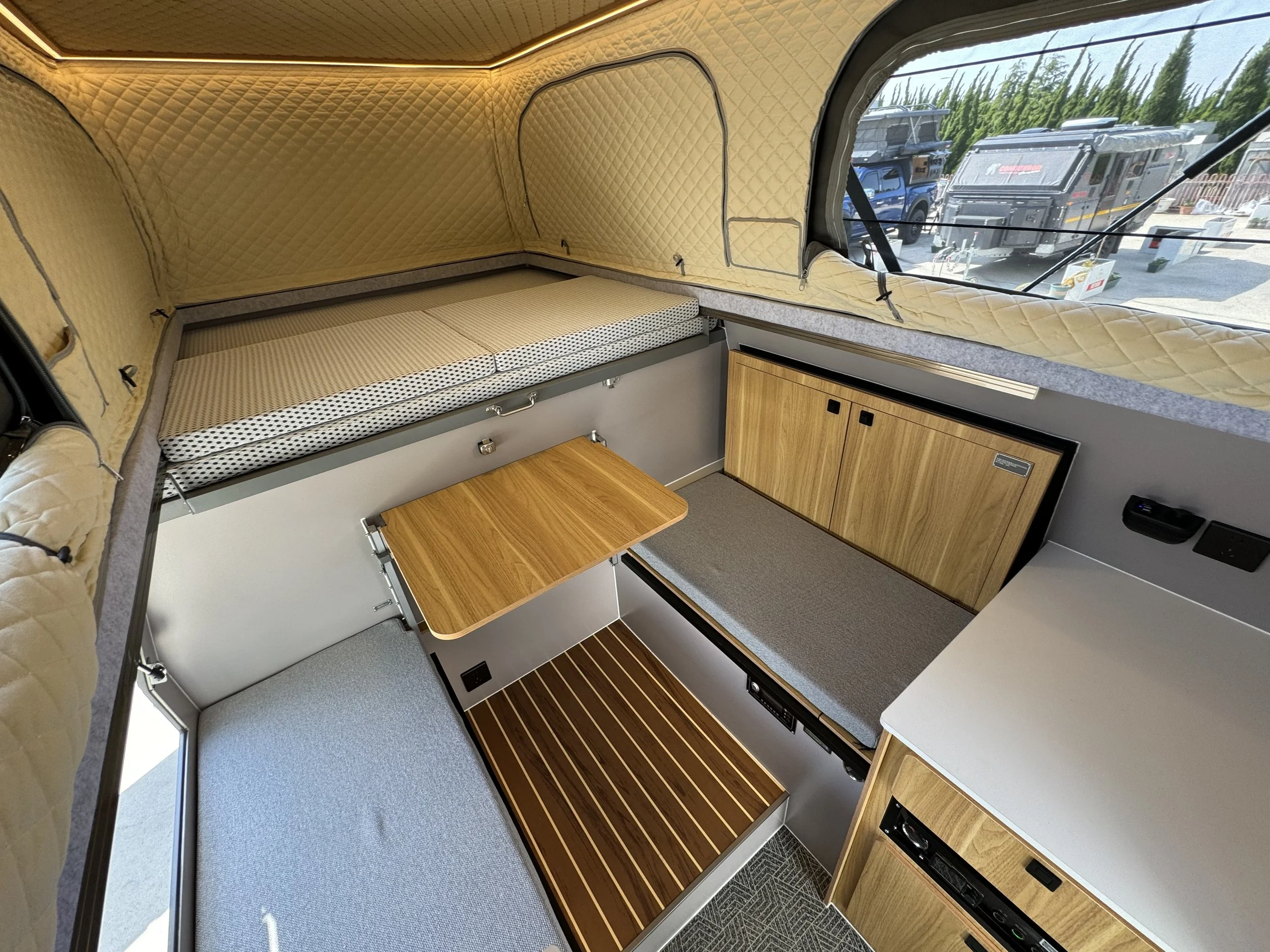

Interior of a camper van with a sitting area, a bed above, and a window showing parked RVs outside.

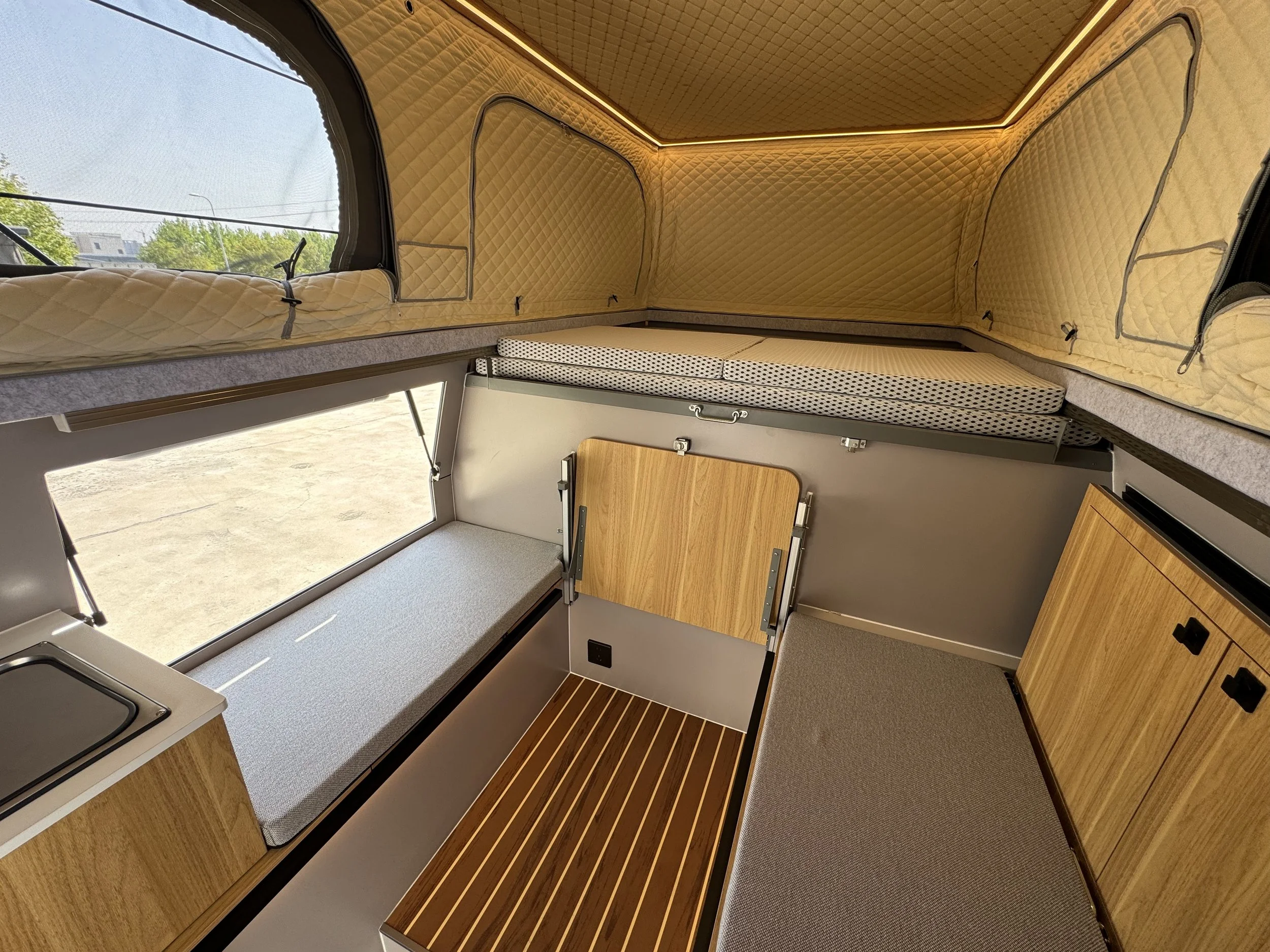

Interior of a compact camper van with wooden cabinetry, padded sleeping area with yellow quilted walls, and large side windows.

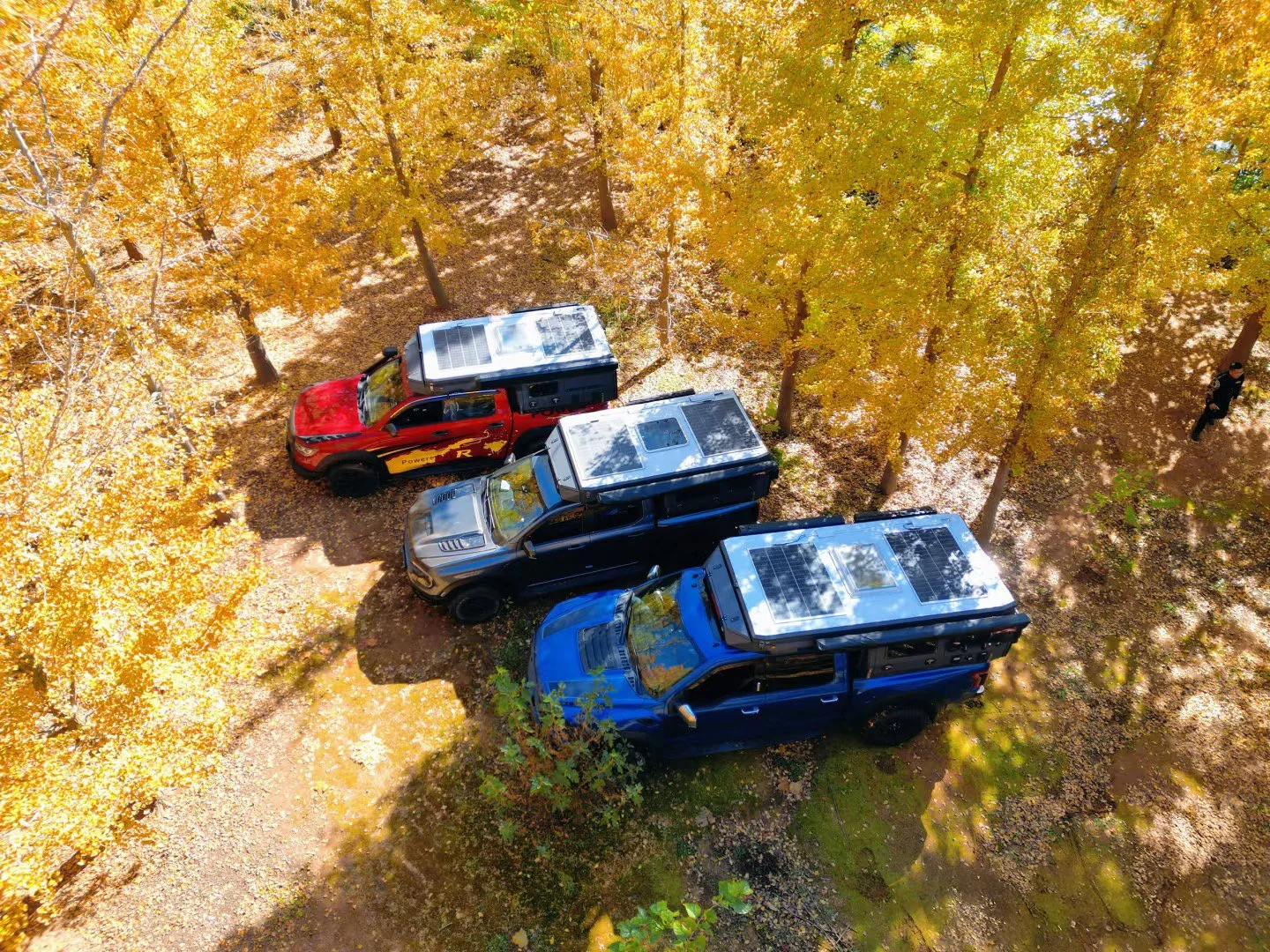

Four off-road vehicles with solar panels on their roofs parked among yellow autumn trees in a forest.

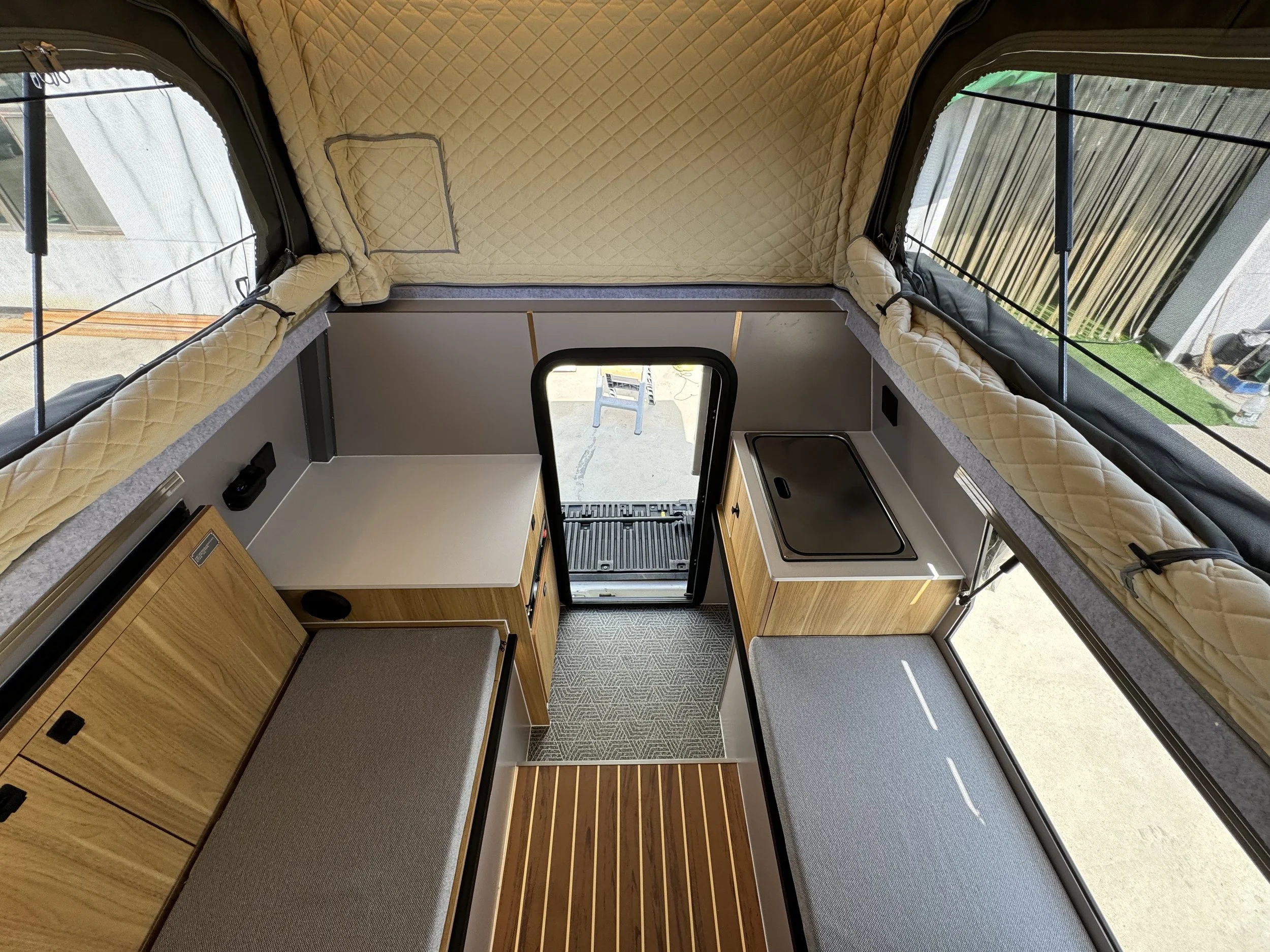

Interior of a camper with wooden cabinets, grey cushions, a small kitchenette with a cover, and large windows with quilted beige curtains.

Make it SIMPLE, MAKE IT GREAT

Experience ultimate freedom with the Flat Road pickup camper – lightweight, durable, and ready for any adventure.

Contact Us

Interested in our products or would like to see them in person? Fill out some info and we will be in touch shortly. We can’t wait to hear from you!
